Version 5 Tree Atlas


Ulmus thomasii

rock elm

elev

Ulmus thomasii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Ulmus thomasii

USDA Plants Database entry for Ulmus thomasii
Silvics Manual entry for Ulmus thomasii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
632083much of range not well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Ulmus_thomasii_final Occurrences

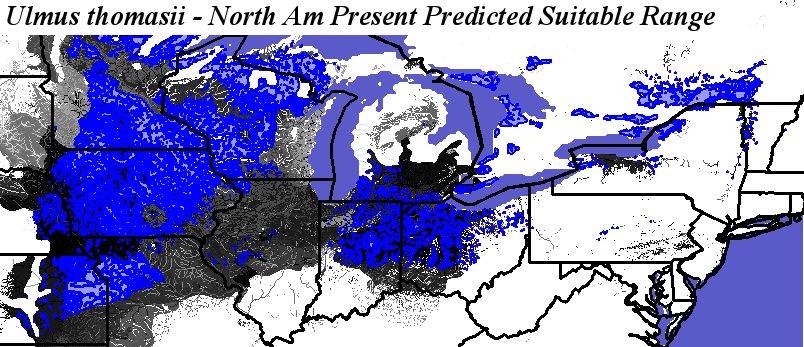

Hargroves Present Suitable Range Outline for Ulmus_thomasii_final
Ulmus thomasii - Occurrence Locations Ulmus thomasii - Hargrove's Present Suitable Range Outline
Present Conditions
Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global

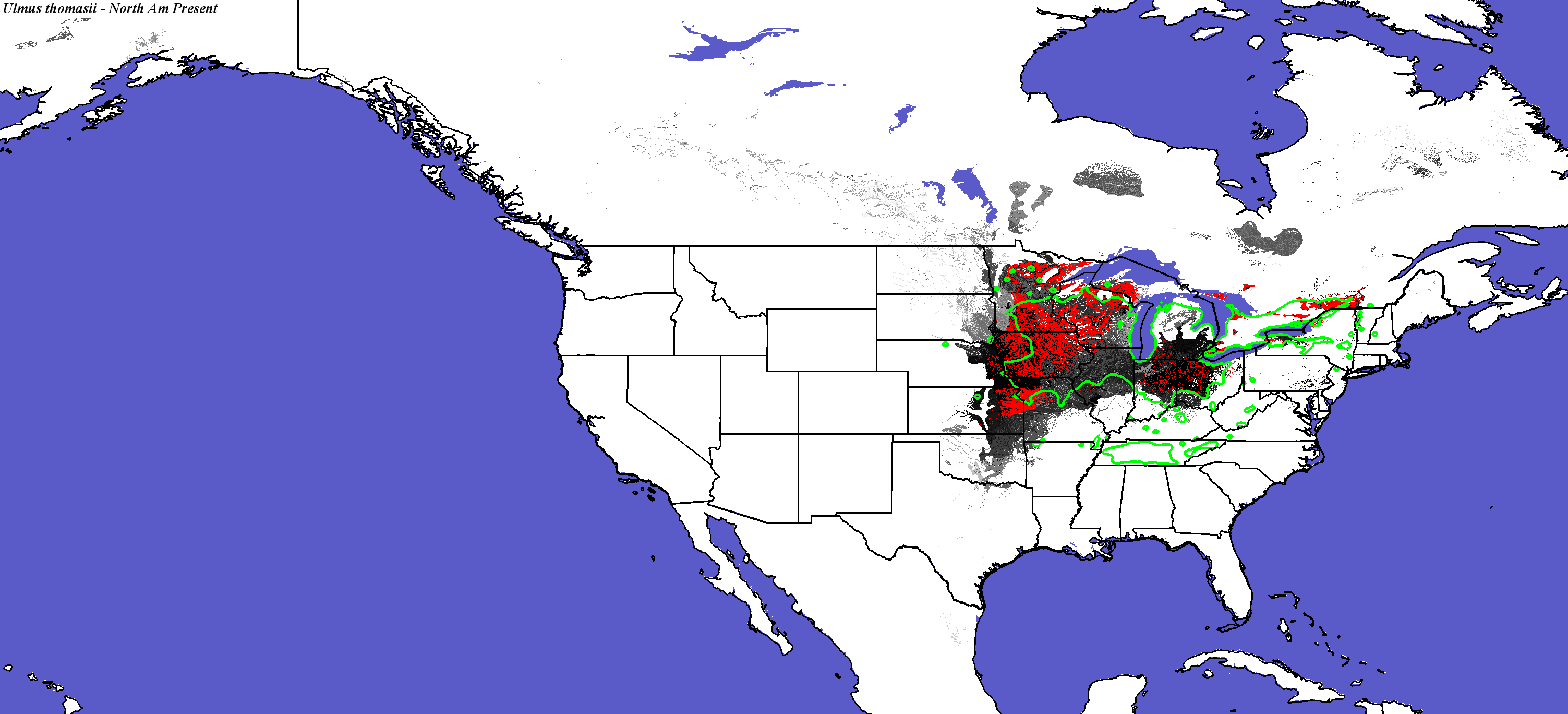

Ulmus thomasii - CONUS
Compare with Current Range from the Silvics Manual for Ulmus thomasii
Compare with Current Range from Biota of North America Program (BONAP) for Ulmus thomasii

Compare with Ulmus thomasii modeled for Current conditions by Iverson and Prasad
Ulmus thomasii not modeled by Crookston and Rehfeldt
Ulmus thomasii not modeled by Coops and Waring

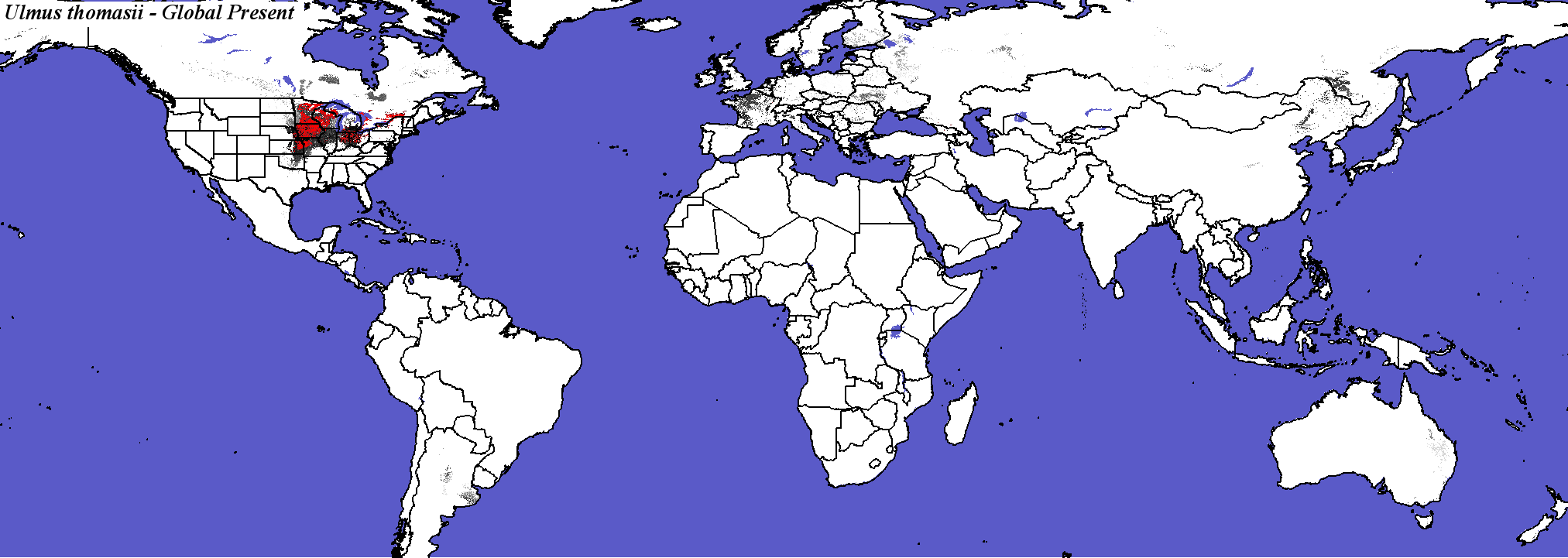

Ulmus thomasii - Global

PCM - Parallel Climate Model
Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global

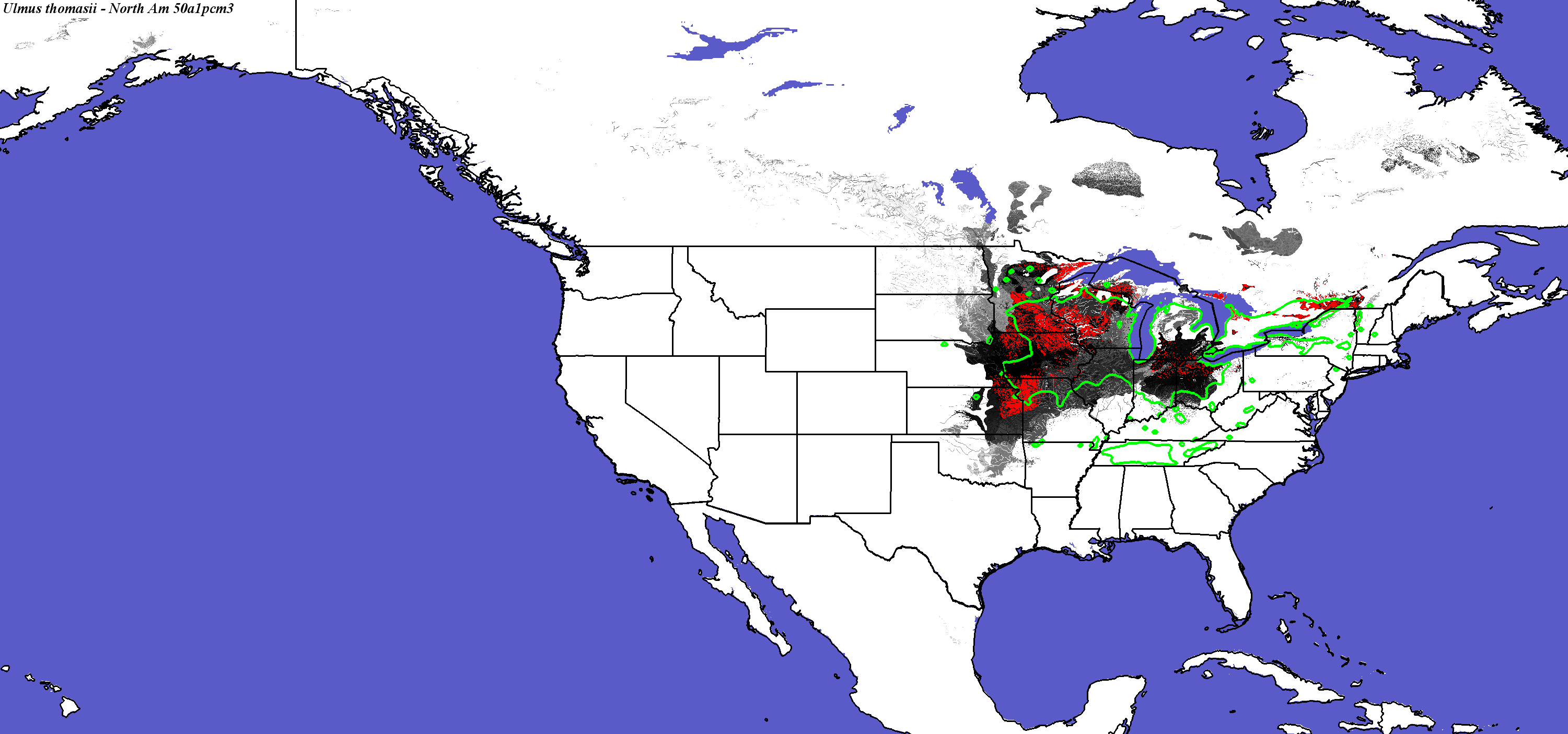

PCM, Scenario A1FI, 2050 - Ulmus thomasii - CONUS
PCM, Scenario A1FI, 2050 - Ulmus thomasii - Global
Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global

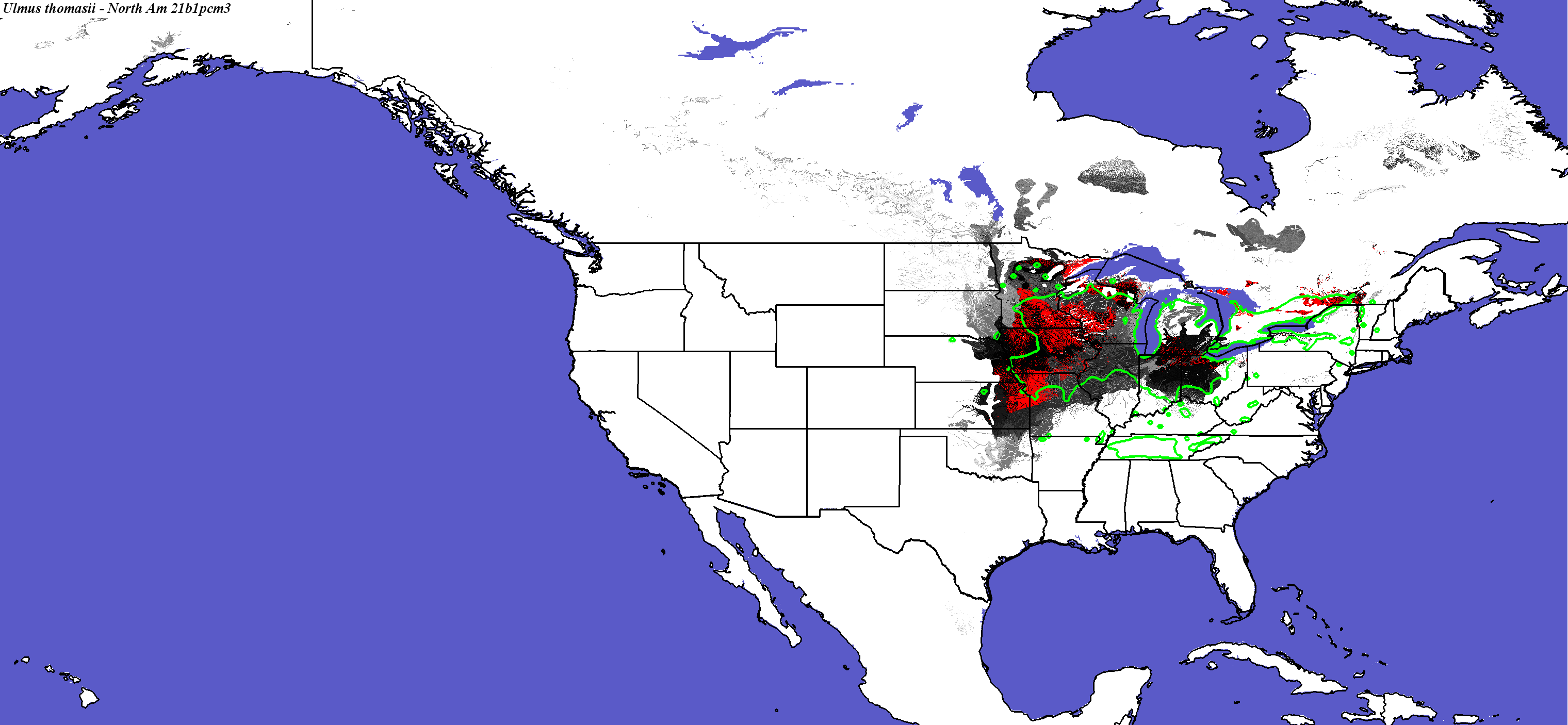

PCM, Scenario A1FI, 2100 - Ulmus thomasii - CONUS
Compare with Ulmus thomasii modeled for PCM A1FI in 2100 by Iverson and Prasad

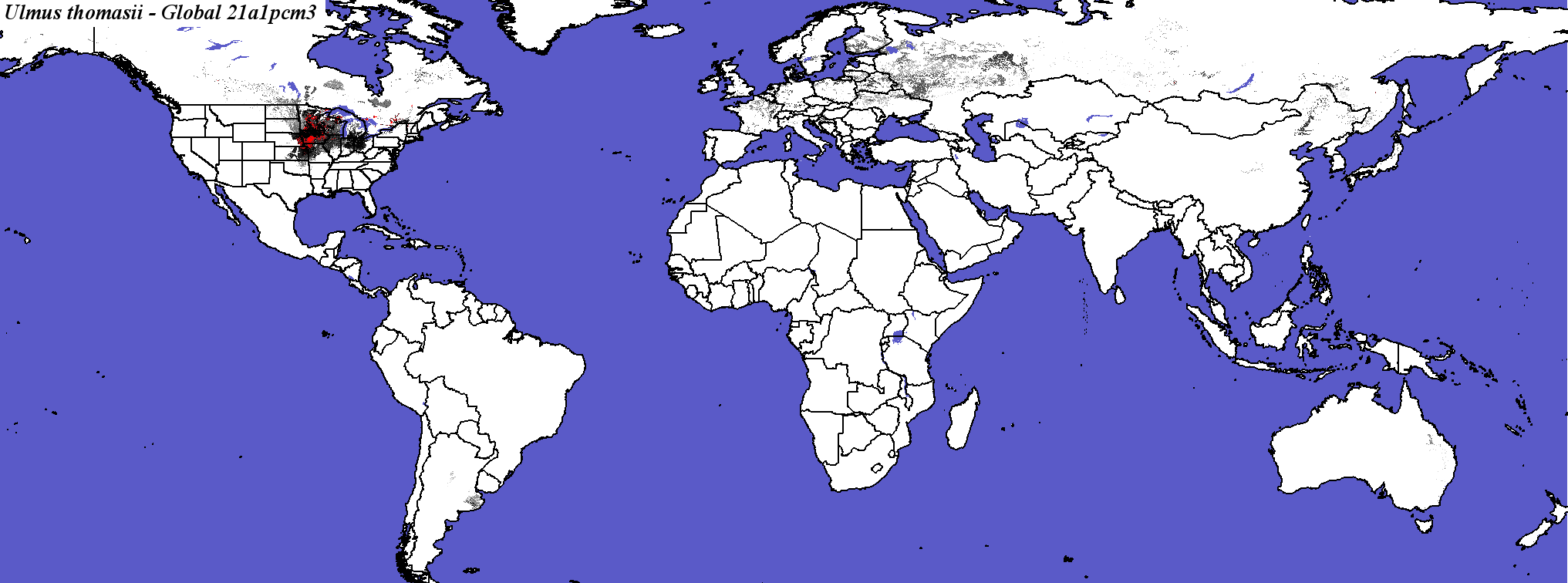

PCM, Scenario A1FI, 2100 - Ulmus thomasii - Global

Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global
PCM, Scenario B1, 2050 - Ulmus thomasii - CONUS
PCM, Scenario B1, 2050 - Ulmus thomasii - Global
Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global
PCM, Scenario B1, 2100 - Ulmus thomasii - CONUS
Compare with Ulmus thomasii modeled for PCM B1 in 2100 by Iverson and Prasad

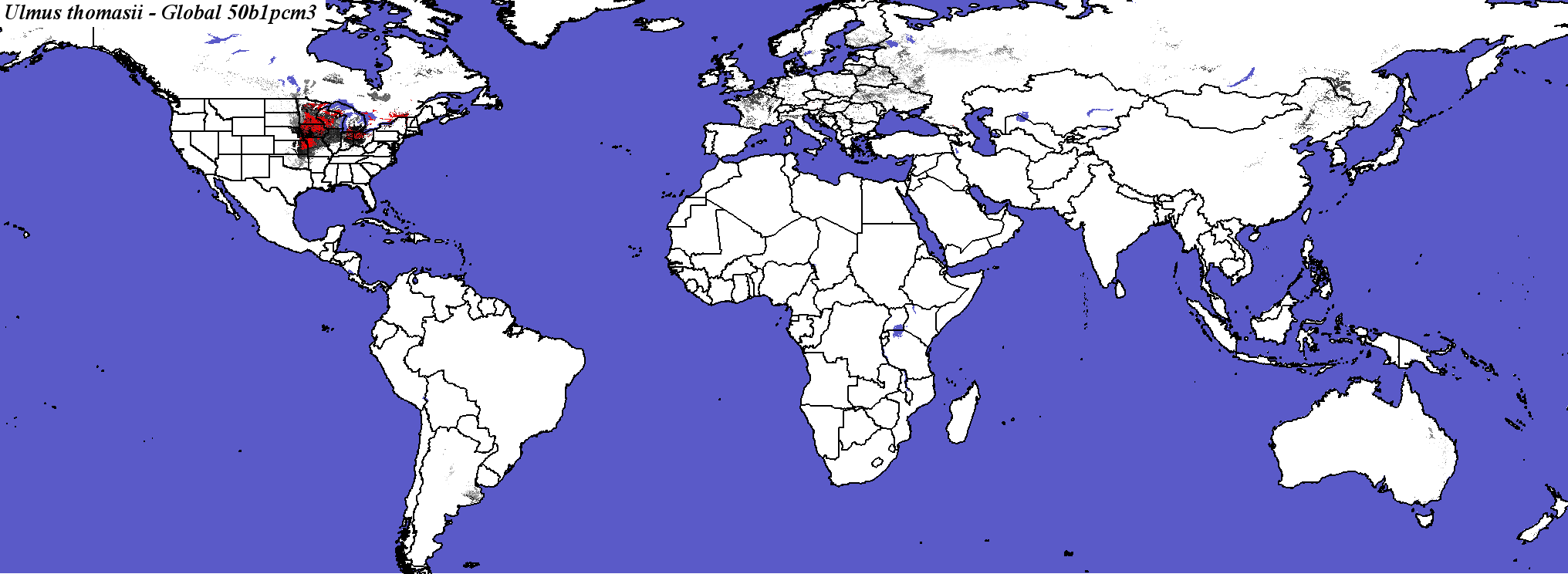

PCM, Scenario B1, 2100 - Ulmus thomasii - Global

Hadley Climate Model
Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global

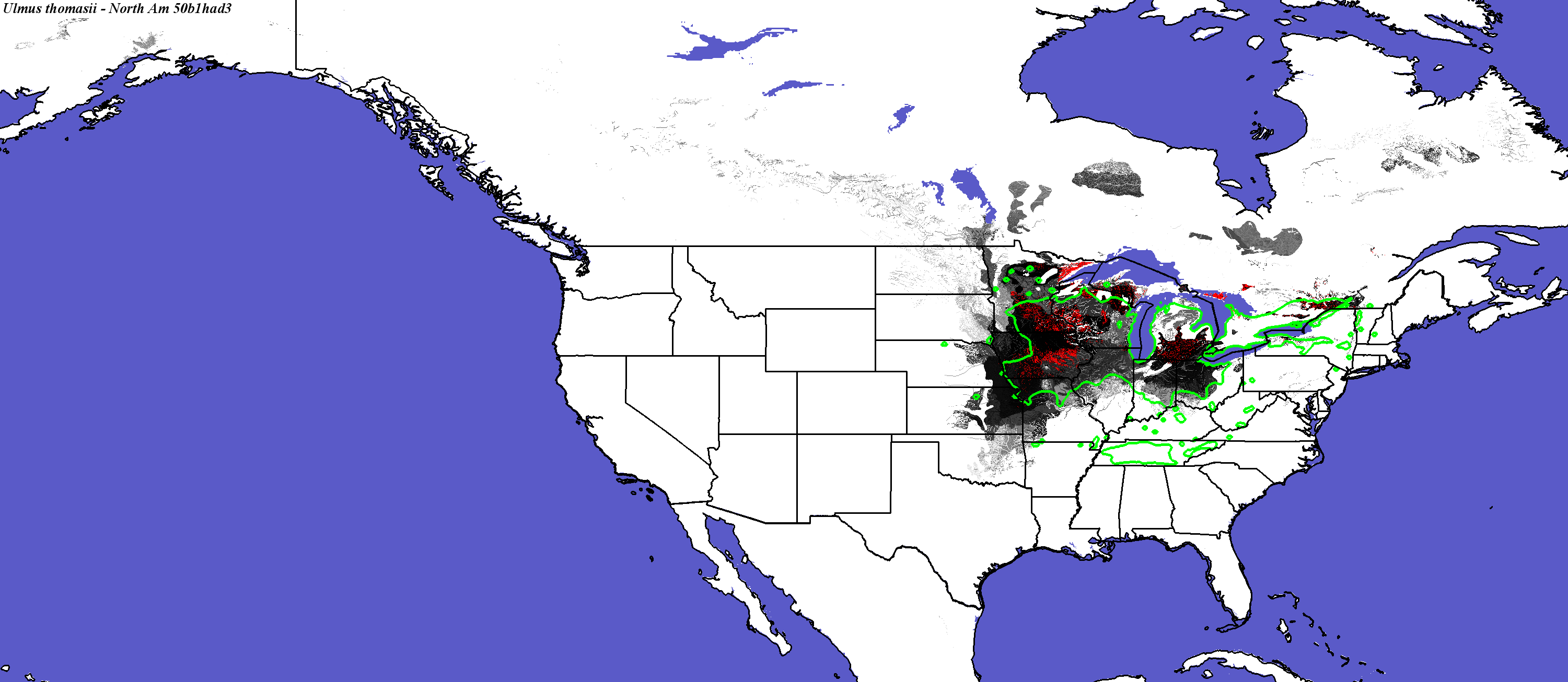

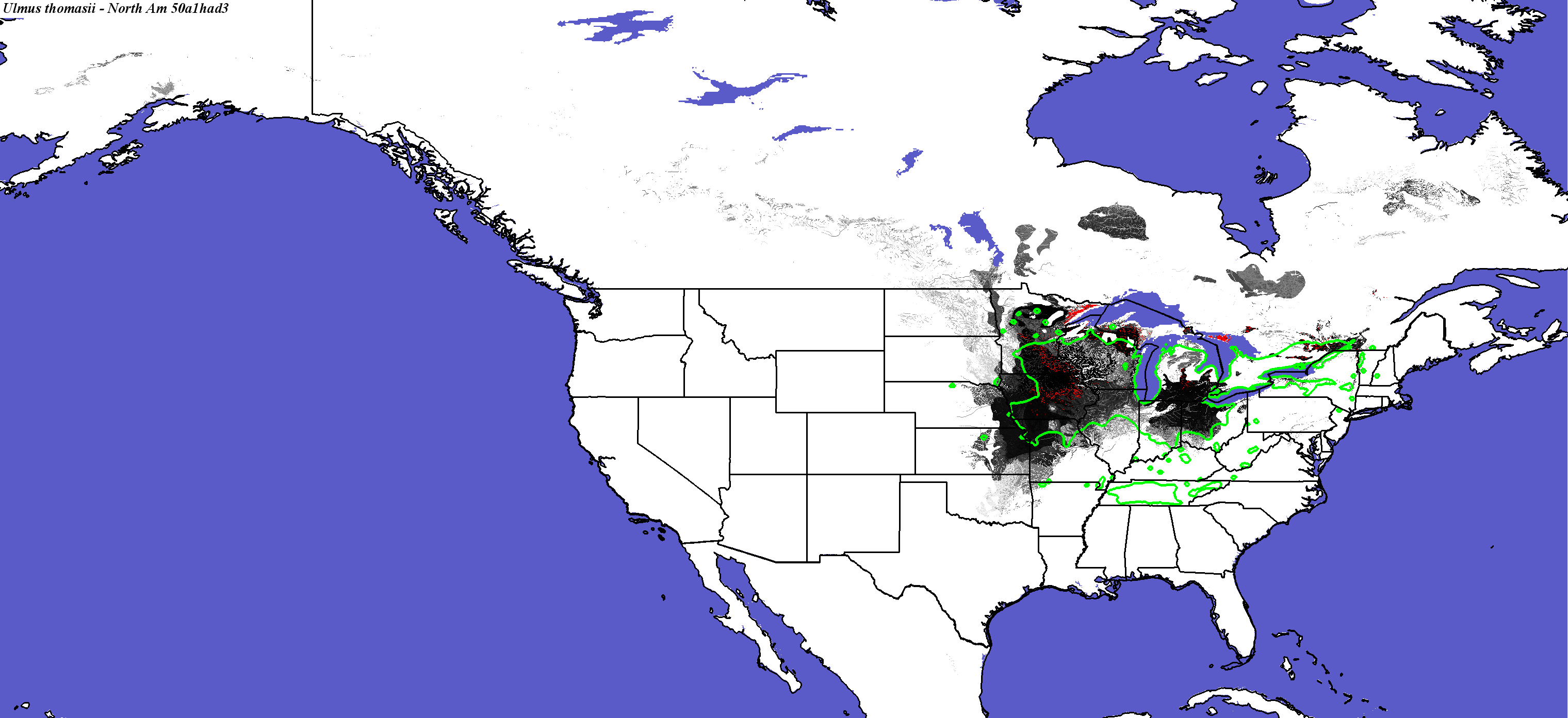

Hadley, Scenario A1FI, 2050 - Ulmus thomasii - CONUS
Ulmus thomasii not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Ulmus thomasii - Global
Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global.

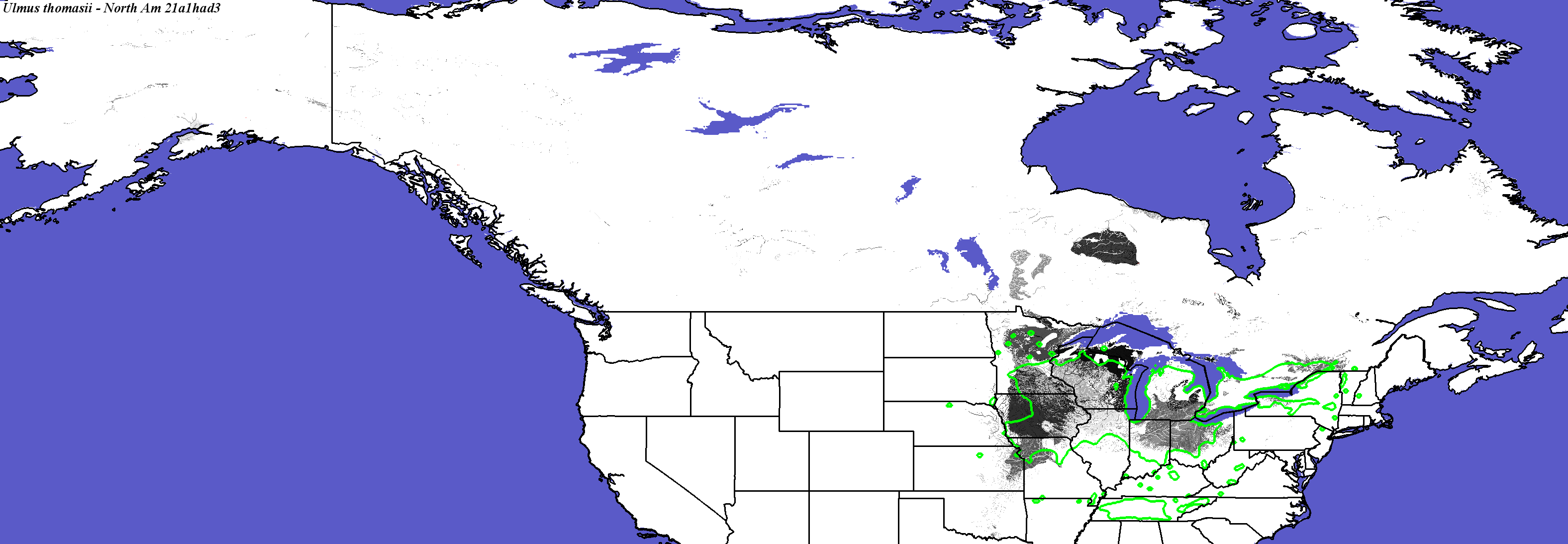

Hadley, Scenario A1FI, 2100 - Ulmus thomasii - CONUS
Compare with Ulmus thomasii modeled for Hadley A1FI in 2100 by Iverson and Prasad
Ulmus thomasii not modeled by Crookston and Rehfeldt
Ulmus thomasii not modeled by Coops and Waring

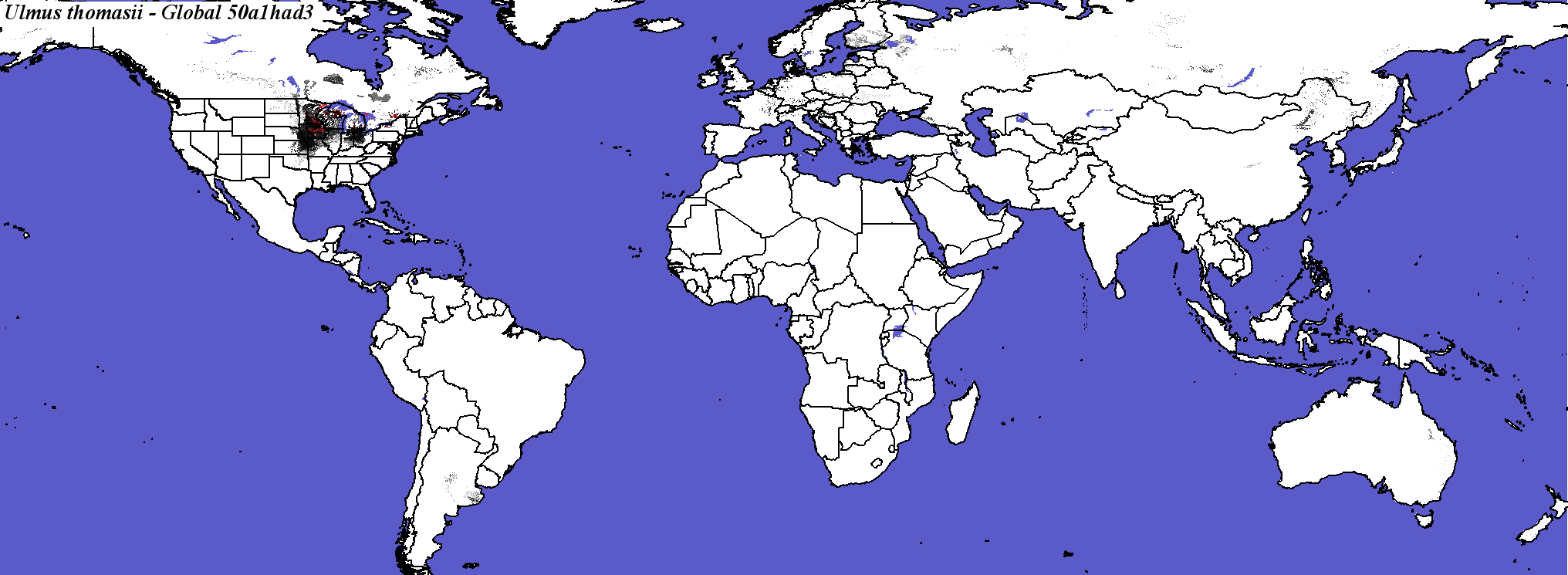

Hadley, Scenario A1FI, 2100 - Ulmus thomasii - Global

Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global.
Hadley, Scenario B1, 2050 - Ulmus thomasii - CONUS
Ulmus thomasii not modeled by Crookston and Rehfeldt
Ulmus thomasii not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Ulmus thomasii - Global
Ulmus_thomasii_final.2.conus
Ulmus_thomasii_final.2.global

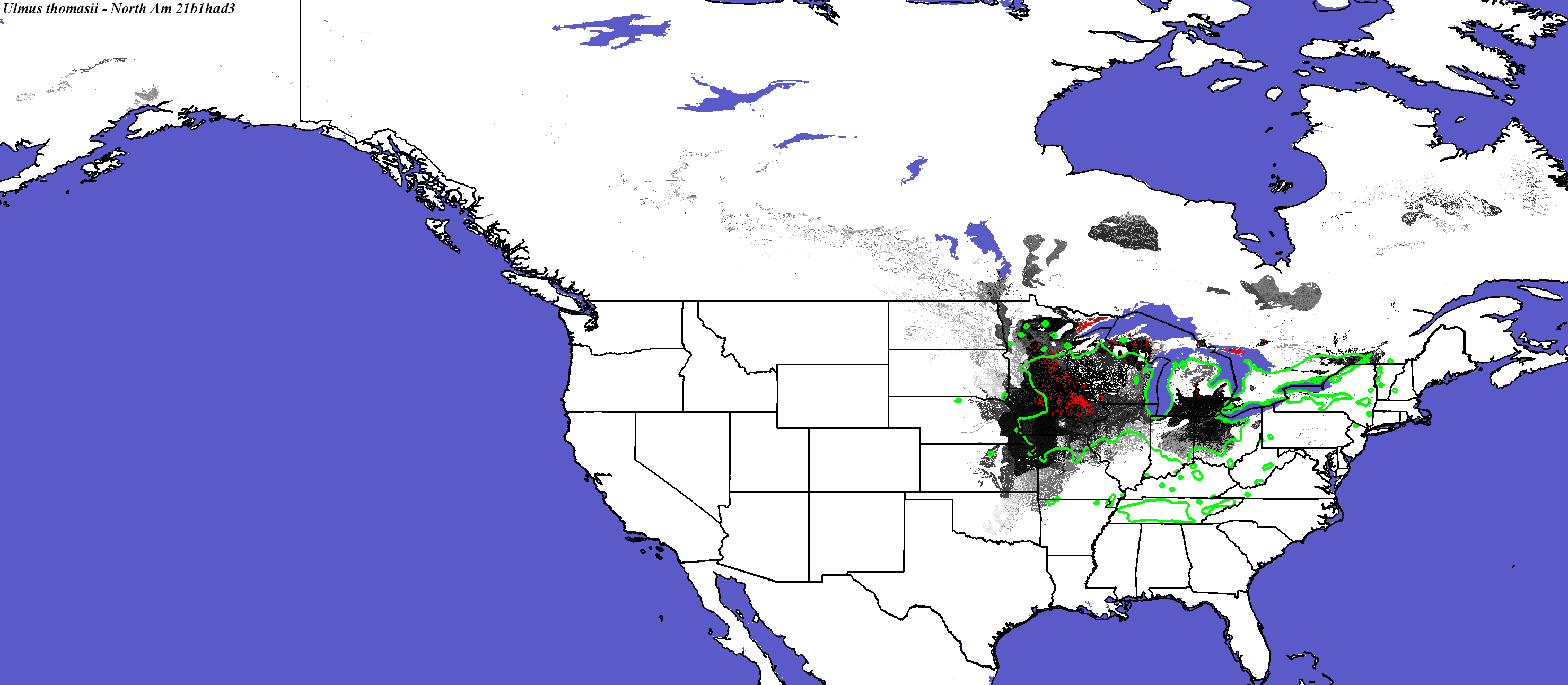

Hadley, Scenario B1, 2100 - Ulmus thomasii - CONUS
Compare with Ulmus thomasii modeled for Hadley B1 in 2100 by Iverson and Prasad
Ulmus thomasii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Ulmus thomasii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Ulmus_thomasii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

15

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

71.7808

Area in Present Suitable Range (in km2)

256193

Area in Future Suitable Range (Had B1 2050, in km2)

50029

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

41096

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

16.0400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

95.7534

Percent Change in Area of Suitable Range (Had B1 2050)

-80.4700

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

99.863

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

57455.3 +/- 69724.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

6.84932

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

22.6816 +/- 24.0289

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

7.67123

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

37.4349 +/- 34.8583

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

66.5753

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

71.6438

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

30891

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

12.0500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

89.1781

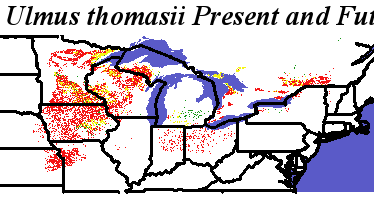

Present and Future Ranges - Hadley, Scenario B1, 2050 - Ulmus thomasii Ulmus thomasii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

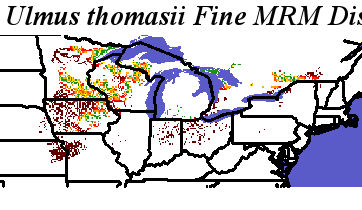

Ulmus_thomasii_final.elev Fine MRM Distance

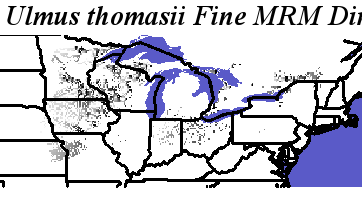

Ulmus_thomasii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Ulmus thomasii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Ulmus thomasii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Ulmus_thomasii_final.elev Coarse MRM Distance

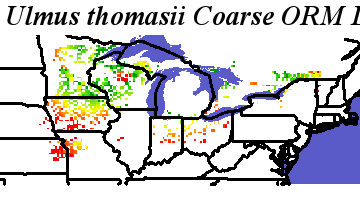

Ulmus_thomasii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Ulmus thomasii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Ulmus thomasii
