Version 5 Tree Atlas


Acer negundo

boxelder

noelev

Acer negundo Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Acer negundo

USDA Plants Database entry for Acer negundo
Silvics Manual entry for Acer negundo


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Acer negundo var. interius; Acer negundo ssp. interius; Acer negundo var. violaceum; Acer negundo var. arizonicum; Acer negundo var. californicum; Acer negundo var. texanum; Acer negundo var. violaceum; Acer negundo ssp. mexicanum; Acer negundo var. mexicanum; Acer negundo var. orizabense24556933148range is well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Acer_negundo_final Occurrences
Hargroves Present Suitable Range Outline for Acer_negundo_final
Acer negundo - Occurrence Locations Acer negundo - Hargrove's Present Suitable Range Outline
Present Conditions
Acer_negundo_final.4.conus
Acer_negundo_final.4.global
Acer negundo - CONUS
Compare with Current Range from the Silvics Manual for Acer negundo
Compare with Current Range from Biota of North America Program (BONAP) for Acer negundo

Compare with Acer negundo modeled for Current conditions by Iverson and Prasad
Acer negundo not modeled by Crookston and Rehfeldt
Acer negundo not modeled by Coops and Waring

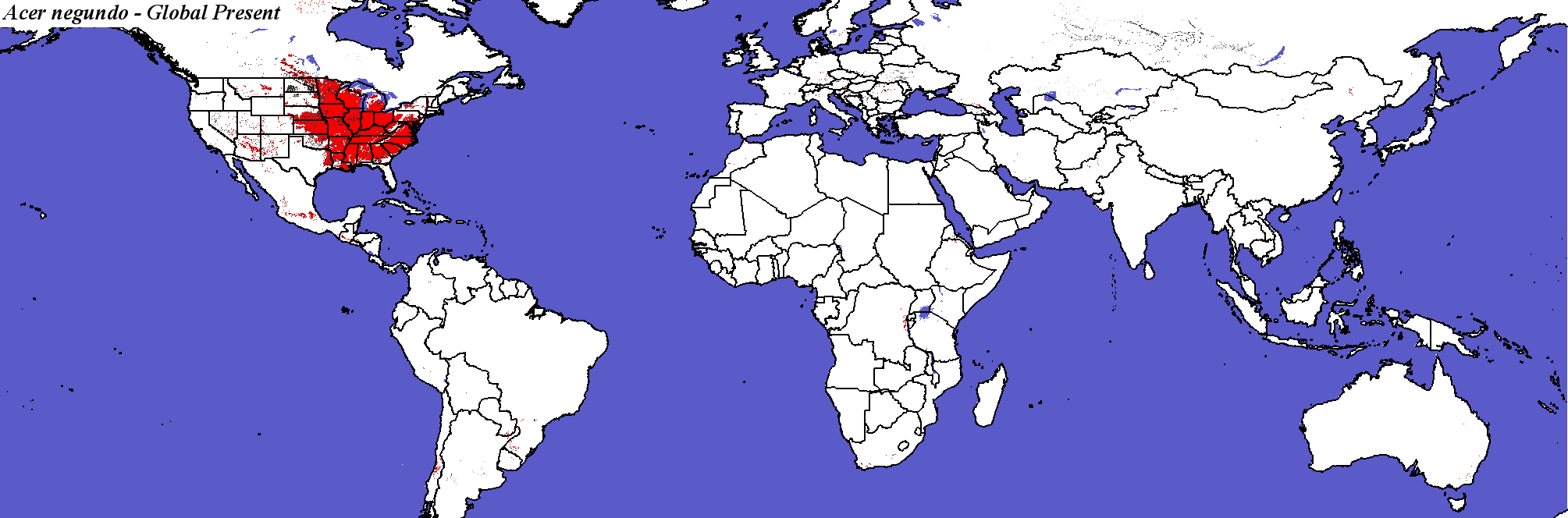

Acer negundo - Global

PCM - Parallel Climate Model
Acer_negundo_final.4.conus
Acer_negundo_final.4.global
PCM, Scenario A1FI, 2050 - Acer negundo - CONUS
PCM, Scenario A1FI, 2050 - Acer negundo - Global
Acer_negundo_final.4.conus
Acer_negundo_final.4.global

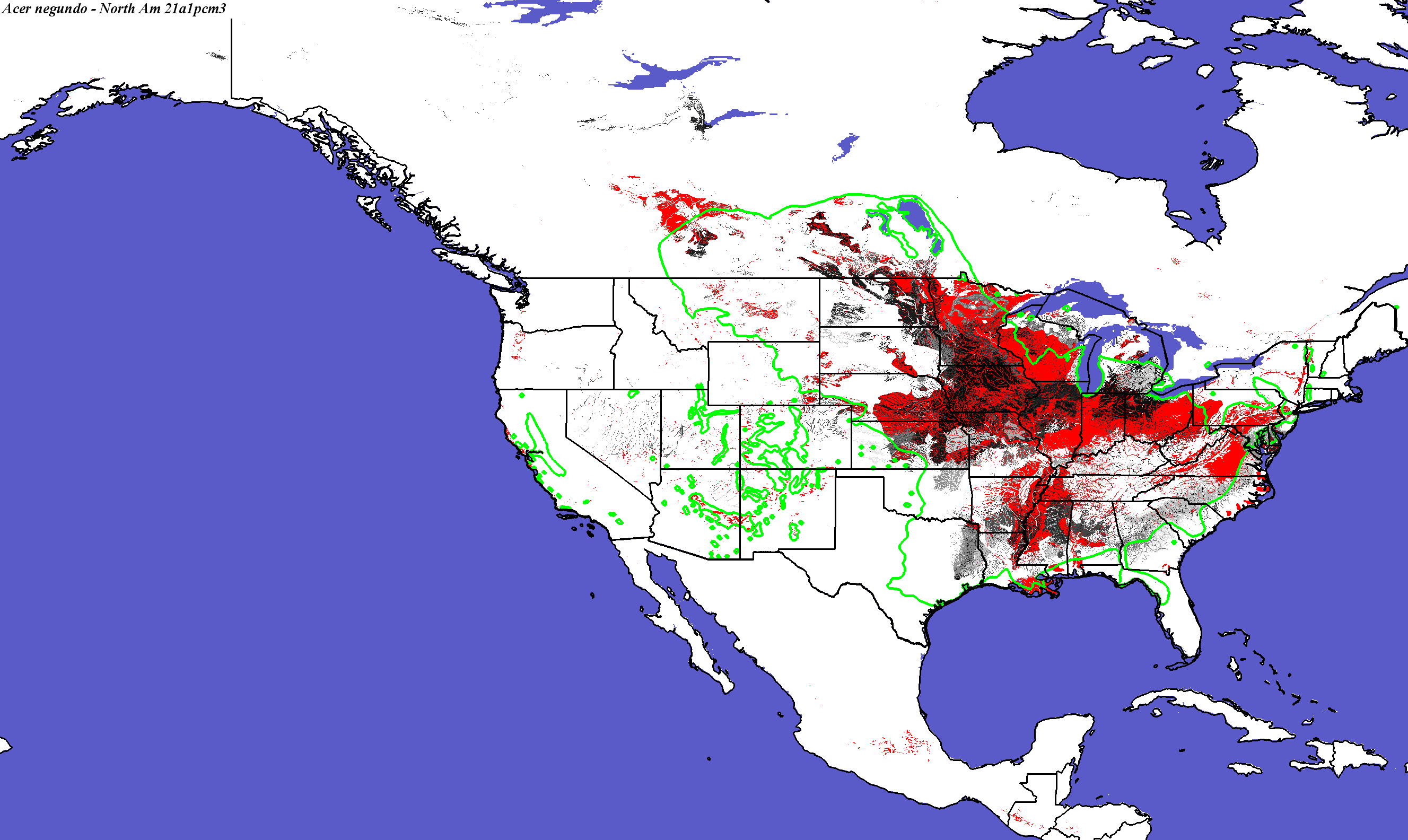

PCM, Scenario A1FI, 2100 - Acer negundo - CONUS
Compare with Acer negundo modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Acer negundo - Global

Acer_negundo_final.4.conus
Acer_negundo_final.4.global
PCM, Scenario B1, 2050 - Acer negundo - CONUS

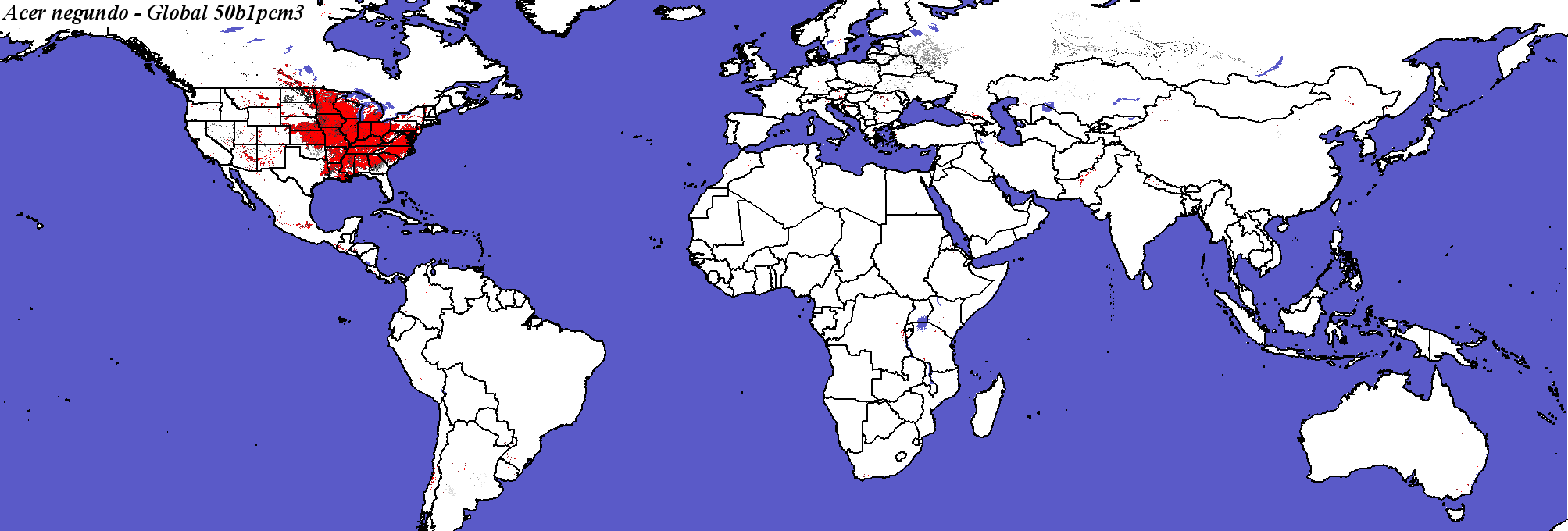

PCM, Scenario B1, 2050 - Acer negundo - Global
Acer_negundo_final.4.conus
Acer_negundo_final.4.global
PCM, Scenario B1, 2100 - Acer negundo - CONUS
Compare with Acer negundo modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Acer negundo - Global

Hadley Climate Model
Acer_negundo_final.4.conus
Acer_negundo_final.4.global
Hadley, Scenario A1FI, 2050 - Acer negundo - CONUS
Acer negundo not modeled by Crookston and Rehfeldt

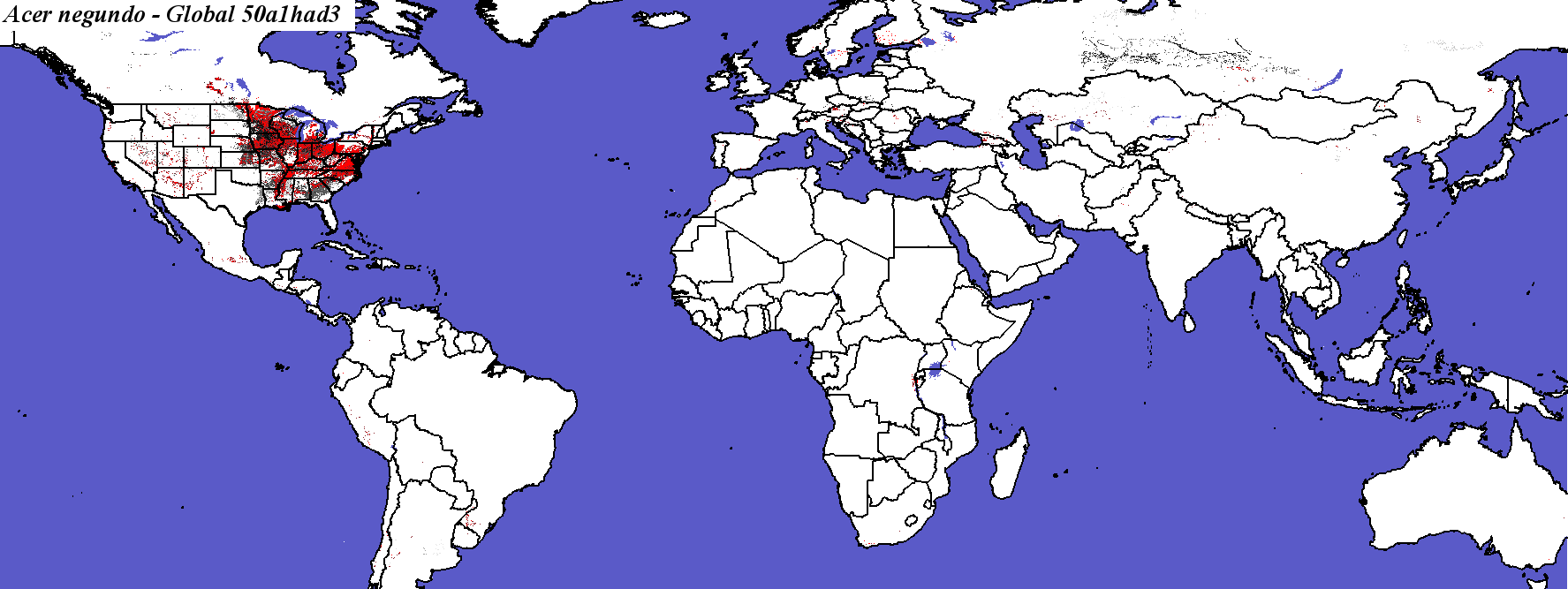

Hadley, Scenario A1FI, 2050 - Acer negundo - Global
Acer_negundo_final.4.conus
Acer_negundo_final.4.global.

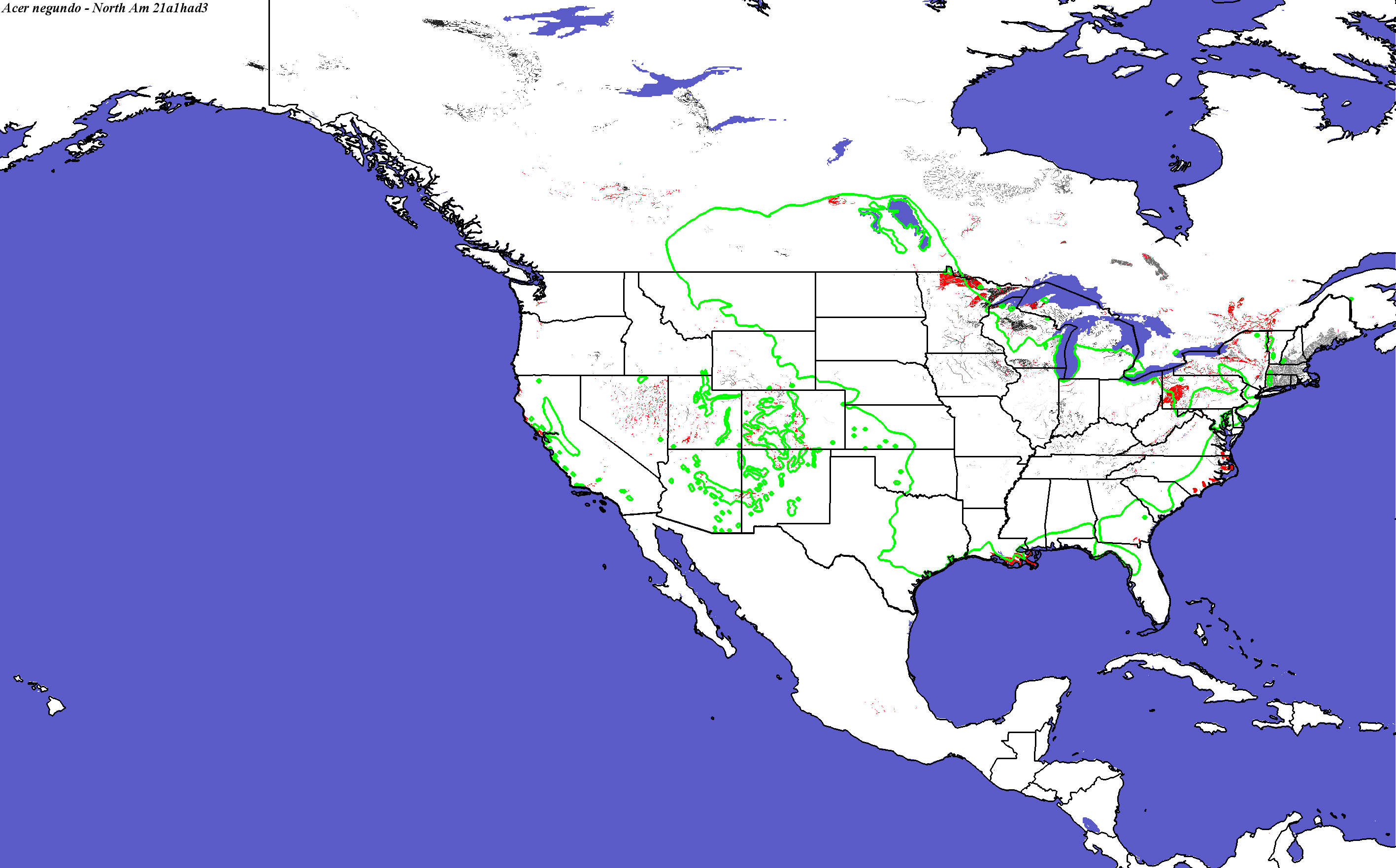

Hadley, Scenario A1FI, 2100 - Acer negundo - CONUS
Compare with Acer negundo modeled for Hadley A1FI in 2100 by Iverson and Prasad
Acer negundo not modeled by Crookston and Rehfeldt
Acer negundo not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Acer negundo - Global

Acer_negundo_final.4.conus
Acer_negundo_final.4.global.
Hadley, Scenario B1, 2050 - Acer negundo - CONUS
Acer negundo not modeled by Crookston and Rehfeldt
Acer negundo not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Acer negundo - Global
Acer_negundo_final.4.conus
Acer_negundo_final.4.global

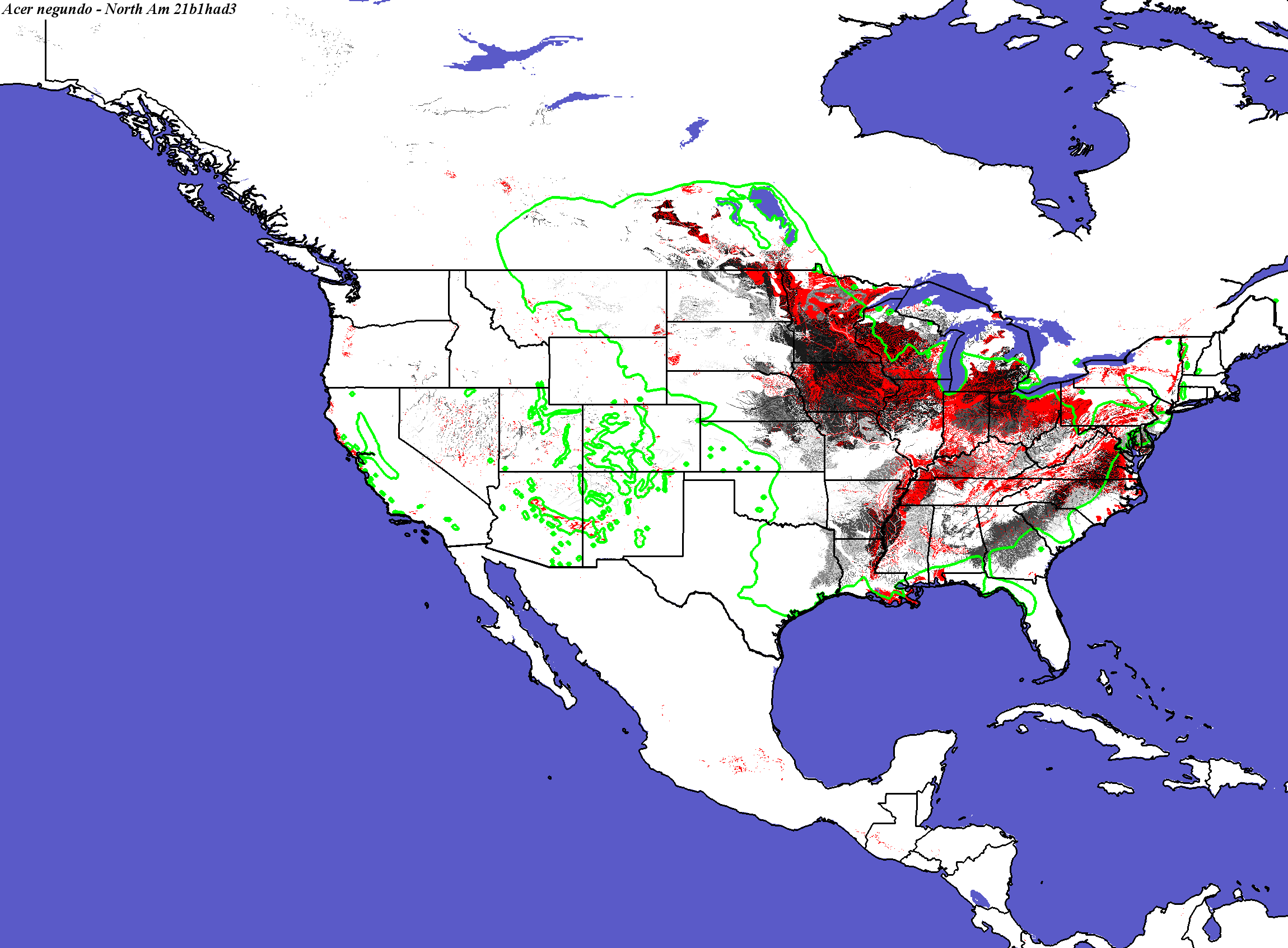

Hadley, Scenario B1, 2100 - Acer negundo - CONUS
Compare with Acer negundo modeled for Hadley B1 in 2100 by Iverson and Prasad
Acer negundo not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Acer negundo - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Acer_negundo_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

224

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

5.75342

Area in Present Suitable Range (in km2)

2210769

Area in Future Suitable Range (Had B1 2050, in km2)

1042183

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

894374

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

40.4500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

69.1781

Percent Change in Area of Suitable Range (Had B1 2050)

-52.8500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

83.1507

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

16217.8 +/- 29615.5

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

44.7945

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.81577 +/- 12.2889

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

52.7397

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

368.698 +/- 922.629

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

8.90411

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

231601

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

10.4700

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

7.12329

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

393311

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

17.7900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

76.1644

Present and Future Ranges - Hadley, Scenario B1, 2050 - Acer negundo Acer negundo - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

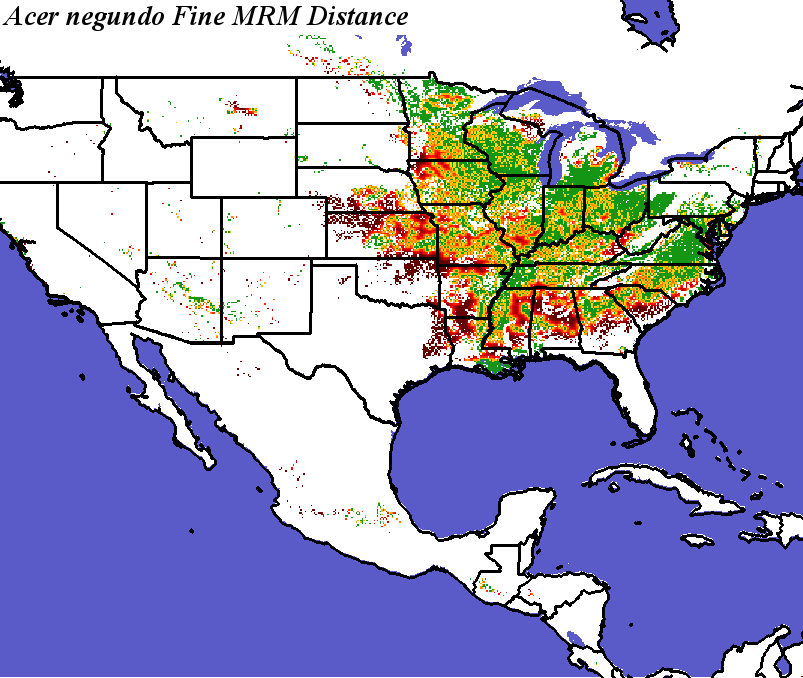

Acer_negundo_final.noelev Fine MRM Distance

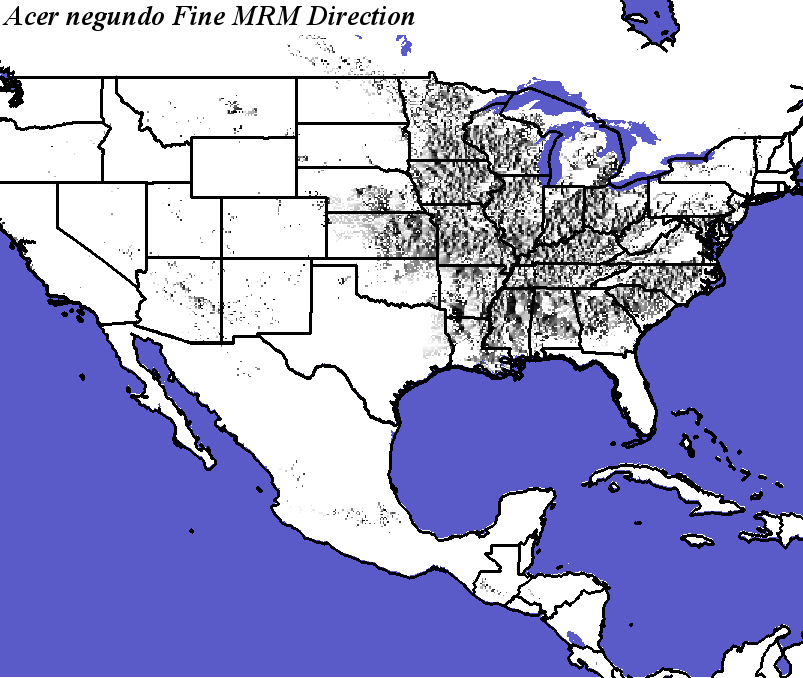

Acer_negundo_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer negundo Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Acer negundo
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Acer_negundo_final.noelev Coarse MRM Distance
Acer_negundo_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer negundo Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Acer negundo
